Arrested Pneumatization with Extramedullary Hematopoiesis of the Clivus⁄Sphenoid Simulating Metastatic Carcinoma
Hammer RD* and Butaric LN
Department of Pathology & Anatomical Sciences, University of Missouri, USA
Received: May 29, 2014; Accepted: May 30, 2014; Published: May 31, 2014
A 37–year–old male presented with bilateral neck masses and lymphadenopathy. The patient was evaluated with ultrasound and CT of the neck. In addition to bilateral masses in the thyroid and multiple enlarged lymph nodes, a destructive lesion involving the clivus and sphenoid sinus was present and initially identified as a metastatic lesion. Subsequent thyroidectomy with neck dissection showed papillary carcinoma with metastatic disease involving multiple bilateral lymph nodes. A biopsy of the bone lesion was performed to r⁄o metastatic disease. The biopsy showed abnormal, curvilinear thin trabeculae that while markedly irregular, lacked osteoclastic activity. The spaces were filled with fat and prominent hypercellular bone marrow, with trilineage hematopoiesis with scattered lymphoid aggregates, some showing reactive follicles. No evidence of metastatic tumor was seen. No underlying hematologic disease was discovered on further analysis. The patient was discharged, with follow–up radiologic studies indicating no metastatic tumors. These findings are consistent with arrested pneumatization and extramedullary hematopoiesis of the cranial base and sphenoidal sinus.
Most of the still developing bones in newborns contain hemapoietic tissue, or red bone marrow, whose main function is erythropoiesis. During relatively well–documented stages of development, adipose tissue within red marrow increases in relative percentage, a process known as red–to–yellow marrow conversion. Among adults, yellow marrow is abundant within medullary cavities of appendicular segments, while red marrow is relatively rare and restricted to the axial skeleton, including some craniofacial bones [1–3]. Although this is the typical adult presentation, yellow marrow can reconvert to red; this is a relatively well–known phenomenon with diseases negatively affecting red–blood–cell function (e.g., leukemia, thalassemia, sickle–cell anemia) [4–8]. This reconversion creates a compensatory site of extra–medullary hematopoiesis. For unclear reasons, even in the absence of pathological evidence as presented here, the red–to–yellow conversion process does not always advance, and red marrow remains into adult–hood.
Within the cranium, this abnormal development is of particular interest because it affects the presentation of normally air–filled structures, confounding clinical interpretations of radiological images . Several studies indicate that pneumatization of the craniofacial bones, such as the paranasal sinuses and mastoid air cells, only occurs after red–to–yellow conversion. If the conversion process does not initiate or complete, pneumatization becomes “arrested,” and the normally aerated area is filled with yellow marrow. More rarely, as reported in the current case, arrested pneumatization results in enduring red marrow, resulting in extramedullary hematopoiesis without accompanying pathologies. Arrested development occurs more frequently the sphenoid sinus, but maxillary  and frontal sinus  cases have been reported. While this bias toward the sphenoid could relate to lack of recognition inothercranial spaces, there could be an underlying biological cause related to the conversion process itself or sphenoidal anatomy.
In the sphenoid, the red–to–yellow conversion begins anteriorly in the pre–sphenoid, moving posteriorly toward the clivus [3,11–13]. This process can start at 7–months of age, but significant conversion is more common around age 2 [11,13]. As conversion progresses posteriorly, yellow marrow presents in the clivus as early as age 2, more commonly by the age of six (38–48%), and most commonly (90%+) by 15 years–of–age . This anterior–posterior marrow conversion is closely related to pneumatization of the sphenoid body . Unlike the other sinuses, the sphenoid sinus is not yet present in its respective bone at birth . Although pneumatization into the sphenoid may start by 15 months (12% of individuals), it more commonly begins around 43–48 months (85%) – closely approximating the timing of significant yellow conversion. Further pneumatization into the sphenoid occurs with resorptionin the sphenoidal body at age 6, extension into the hypophyseal fossa by age 8, and expansionto the adult form by age 12 .

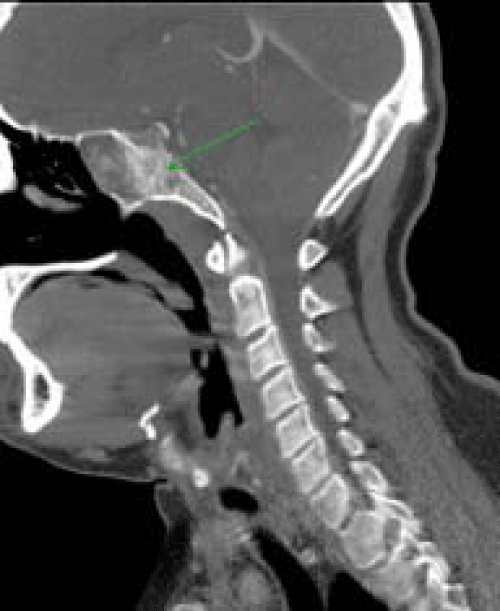

Figure 1: CT shows a lesion in the clivusextending into the sphenoid sinus which is opacified and measures 4.3 cm in maximum dimension. In addition, bilateral masses were present in the thyroid with multiple nodal lesions (not shown). The lesion in the clivus was felt to possibly represent a metastatic lesion.
Although several hypotheses, invoking temperature , bone composition (i.e., the amount of trabecular versus cortical bone; , and⁄or vasculature changes [13,18], attempt to explain why the red–to–yellow conversion process occurs, relatively little is known about this process and why it sometimes “fails.” These hypotheses are of interest to the current case because each is likely affected by several unique attributes related to the development of the sphenoid sinus and its surrounding bone. Compared to the other craniofacial bones, the sphenoid 1) develops through endochondral, not intramembranous, ossification, 2) joins to the neighboring occiput via a synchrondosis, versus a suture, and 3) is the last of the bones whose paranasal sinuses pneumatize its space. Although beyond the scope of this report, additional studies analyzing the unique vasculature and developmental patterns associated with these specific sphenoidal attributes may provide clues into the conversion process itself and why the sphenoidal sinus shows higher frequencies of arrested development.
